UNI EN 16770:2018 | Sicurezza macchine lavorazione del legno

ID 7006 | | Visite: 5826 | Documenti Riservati NormazionePermalink: https://www.certifico.com/id/7006

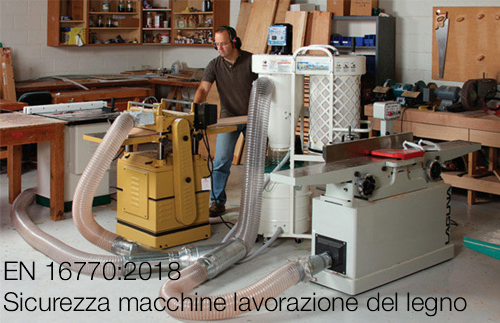

Safety of woodworking machines

UNI EN 16770:2018

Sicurezza delle macchine per la lavorazione del legno - Sistemi di estrazione di trucioli e polveri per installazioni in interni - Requisiti di sicurezza

Data entrata in vigore: 11 ottobre 2018

[alert[La norma tratta tutti i rischi significativi, le situazioni e gli eventi pericolosi pertinenti per i sistemi di estrazione di trucioli e polveri per l’utilizzo in interni designati per essere collegati a macchine per la lavorazione del legno quando essi sono utilizzati come previsto e nelle condizioni previste dal fabbricante, compreso un utilizzo improprio ragionevolmente prevedibile.[/alert]

Recepisce: CEN11039902

http://store.uni.com/catalogo/index.php/uni-en-16770-2018.html

...

In allegato preview EN 16770:2018 riservata Abbonati

EN 16770:2018 - Safety of woodworking machines - Chip and dust extraction systems for indoor installation - Safety requirements

This document deals with all significant hazards, hazardous situations and events as listed in Clause 4, relevant for chip and dust extraction systems for indoor use designated to be connected to woodworking machines, when they are used as intended and under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse. This document does not apply to:

a) extraction systems with a nominal volume flow rate above 8 000 m3 h−1 and/or a volume of the dust loaded part of the dust extractor above 3,5 m3;

b) vacuum cleaners according to EN 60335-2-69;

c) extraction systems with fans installed in the dust loaded part;

d) extraction equipment (e.g. extraction hoods, ducts) within a woodworking machine, i.e. up to and including the outlet to which the extraction system is connected;

e) extraction systems designed for dust with KST values above 200 bar ms−1, minimum ignition energy below 10 mJ and/or lower explosion level below 30 g m−3;

f) extraction systems designed for aspiration of explosive atmospheres, e.g. dust load > 50 % lower explosion level; g) systems designed for extraction of machines with a higher risk of causing ignition sources. This document is not applicable to machines which are manufactured before the date of its publication as a European Standard.

...

Fonte: UNI
EVS

Descrizione Livello Dimensione Downloads
Allegato riservato Preview EN 16770_2018.pdf

84 kB 15
